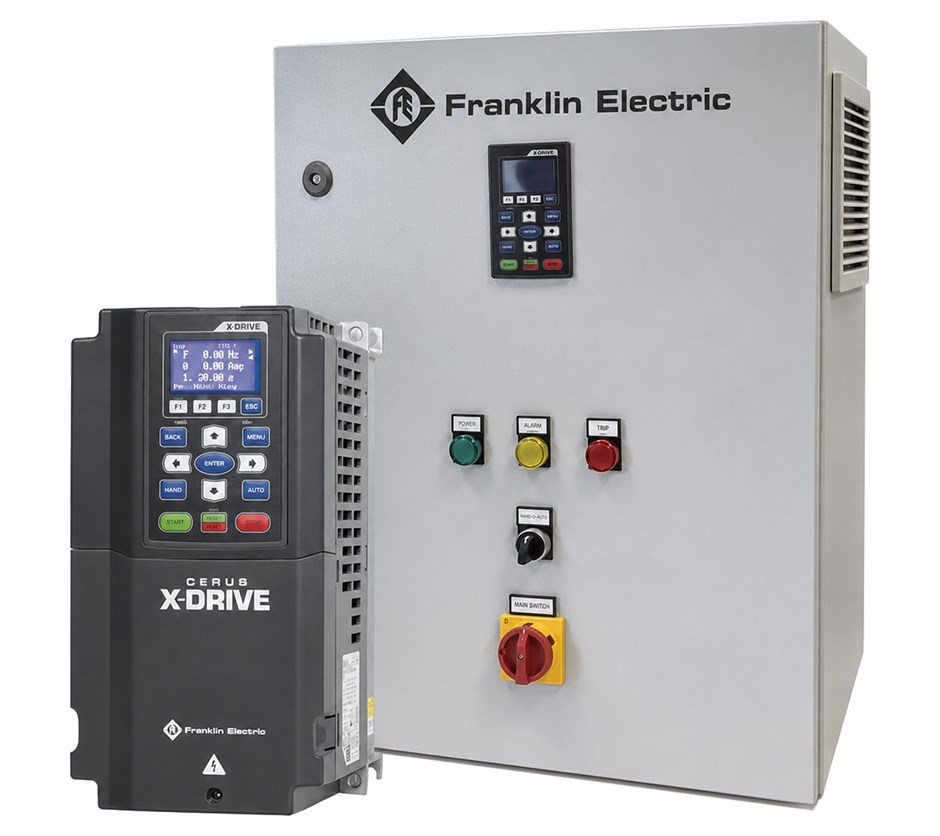

CERUS X-DRIVE Control Panel - 3~ Intelligent motor/pump control & protection

The Franklin Electric new pump control panel featuring the CERUS X‑DRIVE is engineered to make pump control easier, smarter, and more reliable for everyone. Each unit comes pre‑configured from the factory, allowing you to start up your system quickly without navigating complex drive parameters. This streamlined com‑ missioning process saves valuable time on‑site and ensures your pump application is running efficiently from day one.
Built for demanding environments, the complete panel solution offers a higher protection degree, giving the CERUS X‑DRIVE added durability and safeguarding sensitive components against dust, moisture, and harsh conditions. The result is a system de‑ signed for long‑lasting, dependable operation.

Product Info
Ordering / Performance
Downloads
    • Reliable & Versatile
    • Control of standard induction and High‑Efficiency permanent magnet motors
    • Compatible with any 3‑phase submersible or surface pump
    • Easy to Use - Ready out of the Box
    • Factory‑preset drive parameters
    • Integrated Hand‑Off‑Manual Mode Switch
    • Intuitive user experience and reduced time during commissioning
    • Smart Connectivity & Remote Access
    • Built‑in Bluetooth connectivity
    • Remote Support and Control via FE‑Connect mobile app
    • Application-Ready
    • Up to 3 deep‑well level probes can be connected
    • Available Space for optional components (e.g output filter)

    Technical Specification

    Pump & Motor Control Cerus X-Drive pump control panel
    ApplicationsWater supply, Irrigation, Dewatering, Pressure Control
    power range4 - 150 kW
    Enclosure ratingIP54
    Standard voltage3-phase | 380/400 V | 50/60 Hz
    Compatibility3-phase synchronous and asynchronous motors
    Input Voltage380 (-15%) - 460 V ( 10%)
    Maximum ambient temperature-25 °C - 40 °C
    Ambient Humidity20% - 90% RH, non-condensing
    Automatic Motor tuningYes
    Remote controlBluetooth Connectivity
    FE Connect App
    Appliction SettingsSelectable Application Presets
    Dry Run ProtectionSensorless
    User KeypadYes - Removable
    User ModeManual and Automatic Mode
    Analog Input3 analog input (4 - 20 mA) / 0-10 V
    no. of pumps1
    No. of level probesup to 3
    DimensionsFrame size A (B|C|D|E|F)
    Mountingwall / floor mounting
    Start-up procedureSpeed controlled ramp
    Protective functionssensorless dry-running detection blocked pump/shaft
    overload protection undervoltage protection surge protection
    water level
    phase loss / failure

  • Model no.

    part no.TypeP [kW]*V IN [V]I NOMINAL [A]Output Filter
    CXP013A4VBSingle Pump4‑5,5380‑46013built‑in
    CXP018A4VBSingle Pump7,5‑9,3380‑46018built‑in
    CXP024A4VBSingle Pump11380‑46024built‑in
    CXP032A4VBSingle Pump15380‑46032built‑in
    CXP038A4VBSingle Pump18.5380‑46038Optional
    CXP045A4VBSingle Pump22380‑46045Optional
    CXP060A4VBSingle Pump30380‑46060Optional
    CXP073A4VBSingle Pump37380‑46073Optional
    CXP091A4VBSingle Pump45380‑46091Optional
    CXP110A4VBSingle Pump55380‑460110Optional
    CXP150A4VBSingle Pump75‑83380‑460150Optional
    CXP180A4VBSingle Pump93‑100380‑460180Optional
    CXP220A4VBSingle Pump110380‑460220Optional
    CXP260A4VBSingle Pump130380‑460260Optional
    CXP310A4VBSingle Pump150380‑460310Optional
    • *3-phg FE HES motor performance
