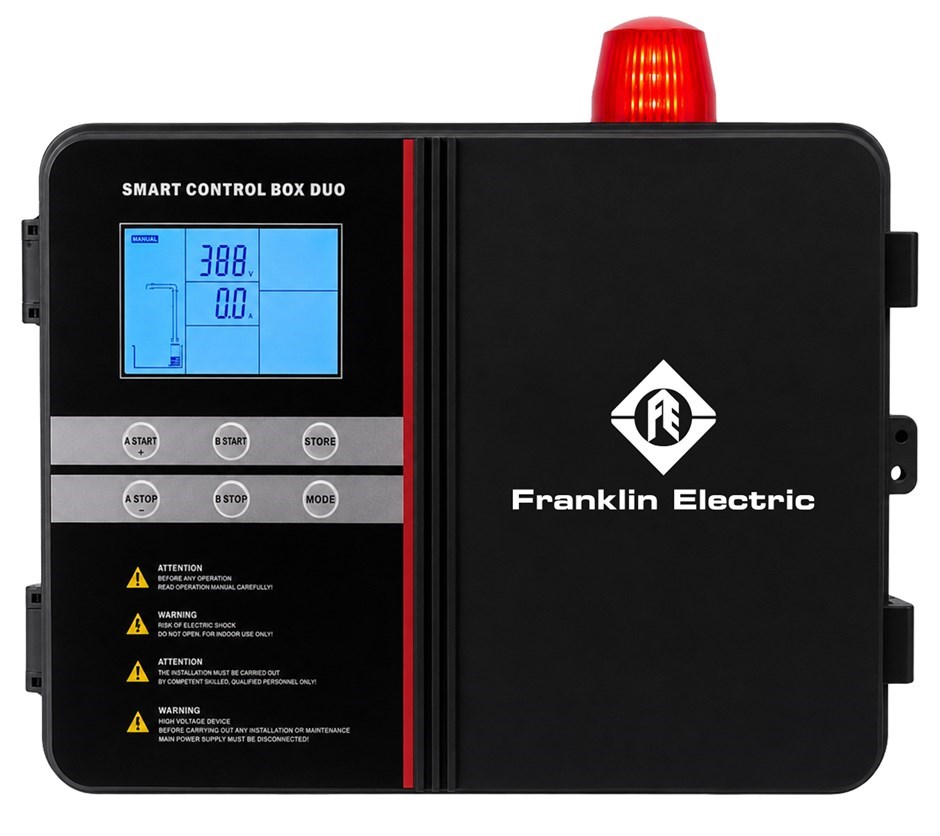

Smart Control Box Duo - Intelligent Control for Dual-Pump Systems
The Smart Control Box Duo (SCBD) from Franklin Electric is the intelligent solution for controlling, monitoring, and protecting two pumps. Designed for demanding applications in water supply, pressure boosting, and wastewater treatment, the SCBD combines state-of-the-art control technology, comprehensive protection features, and maximum flexibility in a rugged enclosure.
-
Your advantages at a glance:
- Intelligent control of two pumps
- Alternating and parallel operation of up to two pumps
- Precise control with 4–20 mA sensors
- Connection of analog 4–20 mA transducers (such as pressure or level sensors)
- Flexible level monitoring
- Connection of up to six single-pole level probes or four 2-wire level switches
- Modbus communication
- Integrated Modbus interface for easy integration of the controller into building management systems and remote monitoring solutions
- Visual and audible alarms
- Integrated audible alarm and highly visible alarm light for quick and unambiguous signaling of malfunctions
- Easy operation
- Reduced installation effort thanks to automatic pump calibration
- Robustness and durability
- Reliable operation even under demanding operating conditions
Technical specification Power range: 0.37 – 2.2 kW (1-phase)
0.55 – 15 kW (3-phase)Motor type: 230 V PSC motors (1-phase)
400 V Asynchrone motors (3-phase)Supply Voltage: 1PH 230V / 3PH 400 V (50/60 Hz) Number of pumps: Up to 2 pumps Start-up procedure: direct-on-line start (DOL) Analog Sensor Inputs: 4-20 mA Digital level inputs: Up to 6 level switches or level sensors Communication: Modbus Alerting: Audible Alarm, Alarm Light Enclosure Protection Rating: IP65 Protective functions: Sensorless dry-run detection Pump/shaft jam
Overload protection Undervoltage protection Overvoltage protection Phase failure
Phase reversal - direction of rotation -
SCBD 1-Phase | 220/230 V | 50/60 Hz
Type model no. PN [kW] Description VN [V] Imax. [A] SCBD22 284 634 6512 0,37 - 2,2 SCBD22-0.37-2.2-230-1PH-2PUMP 230 20 SCBD 3-Phase | 380/400 V | 50/60 Hz
Type model no. PN [kW] Description VIN [V] IMax. [A] SCBD340 288 520 6512 0,55 - 4,0 SCBD340-0.55-4.0-400-3PH-2PUMP 400 25 SCDB375 288 521 6512 5,5 - 7,5 SCBD375-5.5-7.5-400-3PH-2PUMP 400 25 SCBD311 288 522 6512 11 SCBD311-11-400-3PH-2PUMP 400 25 SCBD315 288 523 6512 15 SCBD315-15-400-3PH-2PUMP 400 50 -
