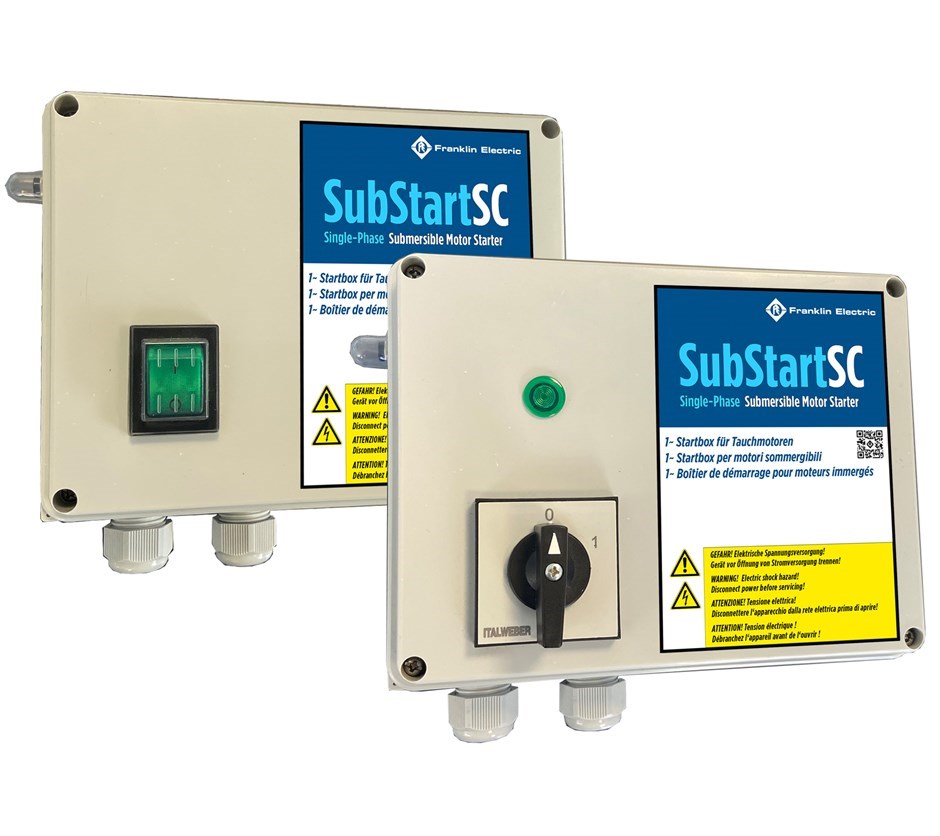

SubStartSC 1-Phase
SubStartSC 1-Phase
The SubStartSC® range covers all PSC motors from 0.25 kW to 2.2 kW for all voltages. Ergonomic design, attention to detail and unique features make the SubStartSC® motor starter range your first choice when considering submersible motor protection. In conjunction with Franklin Electric submersible motors you now have a tangible water system advantage resulting in ease of installation and reliable protection.
-
Specifications:
- Attention to detail – every aspect engineered for the application
- The complete package – the device is 100 % compatible with the motor characteristics
- All in one name – reliability backed by the leader in submersible motors
- Design
- Mounting: easy wall mounting without destroying the protection rating of the enclosure.
- Wiring: sufficient space is provided for ease of wiring.
- Enclosure
- Protection: IP54
- Material: PVC / PC
- Components
- ON/OFF switch: illuminated integral ON/OFF switch for ease of power
- Circuit breaker: thermal circuit breaker for protection of the motor.
- Capacitor: high quality motor run capacitor for long life
- Terminal board: terminal board suitable for ease of reliable connections
- Cable glands: cable glands to ensure IP54 rating
Technical Specifications:
- Mechanical
- Protection level: IP54
- External dimensions: 168 x 142 x 8 5 mm
- Weight: 0.6 - 1.0 kg
- Mounting: wall mounting (mounting hardware provided)
- Temperature: -5 °C - +40 °C
- Humidity: 50 % at 55 °C (without condensation)
- Electrical
- Voltage: 220 - 240 V; - /+10 %; 50 Hz 1-phase
- Current: 2.2 - 16 A
- Power: 0.25 - 2.2 kW
- Standards
- IEC 60439-1
