6" CT PM Motors High Efficiency Solar System
6" CT PM Motors High Efficiency Solar System
Solar system package
Direct DC feeding, AC and DC power source compatible
Suitable for the use in remote areas and harsh environments without grid supply
Robust Electronics enclosure designs
- 6" encapsulated 304SS synchronous submersible NEMA motor
- Variable frequency drive
- Matching output filter
- Flow switch
-
FEATURES & BENEFITS:
- SUPERIOR EFFICIENCY

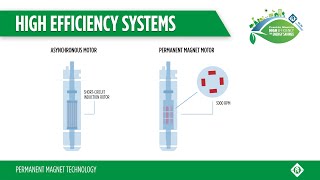

- Up to 15 % improved motor efficiency (system up to 11 %) with excellent partial load behaviour (SKU reduction)*
- Due to the high motor efficiency, amps are significantly reduced, which might lead to smaller drop lead cross size and thus cost saving
- One-stop shop and perfectly matching components guarantee first-class performance/efficiency
- Less panels, more water respectively
- MVPT algorithm maximizes system performance
- Power factor corrected input (No power compensation needed)
- Solar drive available in IP21/54 and IP66 enclosure rating
- AC and DC power source compatible
- Significant lower motor heat rise (Increased lifetime)
- EASY INSTALLATION
- Easy system set-up due tailored pre-settings, user interface and own Franklin Electric software
- INCREASED LIFETIME
- Incorporated Soft start and protection features (no additonal investment)
- Speed control (Optimum aggregate operation - pump matches system any time)
- CONNECTIVITY
- Communication ModBus (RS485 and Ethernet)
- FULLY SUPPORTED
- Fully supported by the Technical Support Professionals and Field Service Engineers
APPLICATIONS:
- Agriculture
- Residential
- Industrial
- Mining
SPECIFICATIONS:
- Motor range:
- 4.0 – 11.0 kW / 13.0 – 22.0 kW / 26.0 – 45.0 kW (100 Hz - 3000 rpm)
- 4.6 – 12.7 kW / 15.0 – 25.0 kW / 30.0 - 51.7 kW (120 Hz - 3600 rpm)
- System Power Supply: 400 - 800 V DC / 380 - 400 V AC
- AC System Supply Frequency: 50/60 Hz ± 6 %
- Motors installation orientation: Vertical / horizontal (shaft end heightened)
- Protection:
- motor: IP68, insulation class F
- drive: IP66/54/21
- filter: IP54/00
SYSTEM OPTIONS:
- Plug-in card 6x DI/DO - 308 170 201
- Plug-in card PT100 - 308 170 202
- Plug-in card Profibus - 308 170 203
- Plug-in card - 1x AI & 2x AO 308 170 206
Related Products
- *In comparison to current asynchronous technology
-
6" HES SOLAR KITS (6" PM motor 380 V - VFD - DV/DT filter - flow switch)
High Efficiency System Controller Motor Output Filter HES Model Order No. Drive Model Part No. IP [kW] [V] Part No. Filter type Part No. IP 6HES 380 4.0-7.5 kW IP21 308 080 016S 100 16A 314 000 108 21 11 380 236 080 1461 dv/dt 314 005 101 00 6HES 380 4.0-7.5 kW IP66 308 080 216S 100X 16A 314 000 109 66 11 380 236 080 1461 dv/dt 314 005110 54 6HES 380 9.3-11 kW IP21 308 080 023S 100 23A 314 000 101 21 11 380 236 080 1461 dv/dt 314 005101 00 6HES 380 9.3-11 kW IP66 308 080 223S 100X 23A 314 000 105 66 11 380 236 080 1461 dv/dt 314 005110 54 6HES 380 13-15 kW IP21 308 084 031S 100 31A 314 000 199 21 22 380 236 084 1461 dv/dt 314 005102 00 6HES 380 13-15 kW IP66 308 084 231S 100X 31A 314 000 200 66 22 380 236 084 1461 dv/dt 314 005111 54 6HES 380 18.5 kW IP21 308 084 038S 100 38A 314 000 102 21 22 380 236 084 1461 dv/dt 314 005102 00 6HES 380 18.5 kW IP66 308 084 238S 100X 38A 314 000 106 66 22 380 236 084 1461 dv/dt 314 005111 54 6HES 380 22 kW IP21 308 084 046S 100 46A 314 000 131 21 22 380 236 084 1461 dv/dt 314 005103 00 6HES 380 22 kW IP66 308 084 246S 100X 46A 314 000 159 66 22 380 236 084 1461 dv/dt 314 005112 54 6HES 380 26-30 kW IP21 308 086 061S 100 61A 314 000 103 21 45 380 236 086 1461 dv/dt 314 005103 00 6HES 380 26-30 kW IP66 308 086 261S 100X 61A 314 000 107 66 45 380 236 086 1461 dv/dt 314 005112 54 6HES 380 37 kW IP21 308 086 087S 100 87A 314 000 104 21 45 380 236 086 1461 dv/dt 314 005104 00 6HES 380 37 kW IP54 308 086 287S 100 87A IP54 314 000 120 54 45 380 236 086 1461 dv/dt 314 005118 54 6HES 380 45 kW IP21 308 086 010S 100 105A 314 000 132 21 45 380 236 086 1461 dv/dt 314 005137 00 6HES 380 45 kW IP54 308 086 210S 100 105A IP54 314 000 201 54 45 380 236 086 1461 dv/dt 314 005124 54 6" HES SOLAR KITS (6" PM motor 380 V - VFD - SINUS filter - flow switch)
High Efficiency System Controller Motor Output Filter HES Model Order No. Drive Model Part No. IP [kW] [V] Part No. Filter type Part No. IP 6HES 380 4.0-7.5 kW Sin IP21 308 080 116S 100 16A 314 000 108 21 11 380 236 080 1461 Sinus 314 005 105 00 6HES 380 4.0-7.5 kW Sin IP66 308 080 316S 100X 16A 314 000 109 66 11 380 236 080 1461 Sinus 314 005 117 54 6HES 380 9.3-11 kW Sin IP21 308 080 123S 100 23A 314 000 101 21 11 380 236 080 1461 Sinus 314 005 106 00 6HES 380 9.3-11 kW Sin IP66 308 080 323S 100X 23A 314 000 105 66 11 380 236 080 1461 Sinus 314 005 113 54 6HES 380 13-15 kW Sin IP21 308 084 131S 100 31A 314 000 199 21 22 380 236 084 1461 Sinus 314 005 106 00 6HES 380 13-15 kW Sin IP66 308 084 331S 100X 31A 314 000 200 66 22 380 236 084 1461 Sinus 314 005 115 54 6HES 380 18.5 kW Sin IP21 308 084 138S 100 38A 314 000 102 21 22 380 236 084 1461 Sinus 314 005 107 00 6HES 380 18.5 kW Sin IP66 308 084 338S 100X 38A 314 000 106 66 22 380 236 084 1461 Sinus 314 005 115 54 6HES 380 22 kW Sin IP21 308 084 146S 100 46A 314 000 131 21 22 380 236 084 1461 Sinus 314 005 107 00 6HES 380 22 kW Sin IP66 308 084 346S 100X 46A 314 000 159 66 22 380 236 084 1461 Sinus 314 005 116 54 6HES 380 26-30 kW Sin IP21 308 086 161S 100 61A 314 000 103 21 45 380 236 086 1461 Sinus 314 005 108 00 6HES 380 26-30 kW Sin IP66 308 086 361S 100X 61A 314 000 107 66 45 380 236 086 1461 Sinus 314 005 116 54 6HES 380 37 kW Sin IP21 308 086 187S 100 87A 314 000 104 21 45 380 236 086 1461 Sinus 314 005 109 00 6HES 380 37 kW Sin IP54 308 086 387S 100 87A IP54 314 000 120 54 45 380 236 086 1461 Sinus 314 005 138 54 6HES 380 45 kW Sin IP21 308 086 110S 100 105A 314 000 132 21 45 380 236 086 1461 Sinus 314 005 109 00 6HES 380 45 kW Sin IP54 308 086 310S 100 105A IP54 314 000 201 54 45 380 236 086 1461 Sinus 314 005 138 54 - Non-stock items; kits with 316SS Motors 308 08x xxx "B"
- kits with motor brackets Cast Iron Powder coated 308 08x xxx "D"
- for lead lengths > 120 m please consult Franklin Electric
3~ Motor performance data 380 V / 100 Hz
System model no. PN
[kW]Thrust
F [N][V] nN
[min-1]IN
[A]IA / IN*
[A]η
[%]PF TN
[Nm]TA/TN
[Nm]308 080 X16S 4 15 500 380 3000 9.2 1 87.1 0.95 12.7 1 5.5 11 1 89.8 0.95 17.5 1 7.5 14.1 1 90.9 0.95 23.9 1 308 080 X23S 9.3 15 500 380 3000 17.2 1 91.2 0.95 29.6 1 11 20.5 1 90.9 0.95 35.0 1 308 084 X31S 13 15 500 380 3000 25.3 1 91.4 0.95 41.4 1 15 28.3 1 91.8 0.95 47.7 1 308 084 X38S 18.5 15 500 380 3000 34.1 1 92.1 0.95 58.9 1 308 084 X46S 22 15 500 380 3000 40.7 1 92.0 0.95 70.0 1 308 086 X61S 26 27 500 380 3000 51.2 1 92.3 0.95 82.8 1 30 57.8 1 92.5 0.95 95.5 1 308 086 X87S 37 27 500 380 3000 71.3 1 92.1 0.95 117.8 1 308 086 X10S 45 27 500 380 3000 90 1 90.8 0.95 143.2 1 -
