Applications

• Municipal water works
• Water distribution and pressure boosting
• Irrigation and sprinkler systems, water treatment plants, filtration and reverse osmosis
• Industrial cooling and processing
• Mining industry, drainage and dewatering Fire-fighting equipment Fountains
• Fire-fighting equipment
• Fountains

Features

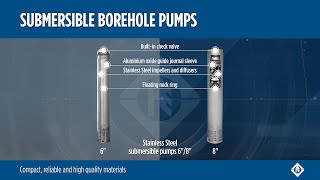

• Stainless steel components for durability and rubustness, guaranteeing longevity and trouble-free operation. Many design technical features make this pump range very compact and extremely reliable, to ensure applications in the most complex and severe conditions.
• External stainless steel sleeve to improve stiffness and assure permanent alignment of all the components
• Motor adapter and discharge head may be removed without disturbing the impeller / diffuser stack
• Built-in check valve and over size pump shaft
• Easy maintenance without the need of special tools

Pump specifications

• Flow:
• up to 120 m³/h at 50 Hz
• up to 160 m³/h at 60 Hz
• Head:
• up to 500 m (50 Bar) at 50 Hz
• up to 524 m (51 Bar) at 60 Hz
• Water temperature range:
• Minimum: -5 °C
• Maximum: +90 °C (+60 °C for NBR parts)
• Maximum allowable amount of sand 100 g/m³
• Rotation: counter clockwise when looking into the discharge
• Pump can work continuously in vertical or horizontal position

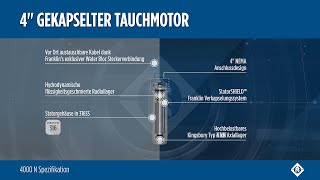

Motor specifications

• Motor adapter in compliance with NEMA standard
• For more information consult the product catalog of Submersible motors
