RWK10 - 10" Rewindable CI Submersible Motors

RWK10 - 10" Rewindable CI Submersible Motors

10" RWK Submersible Rewindable Motors

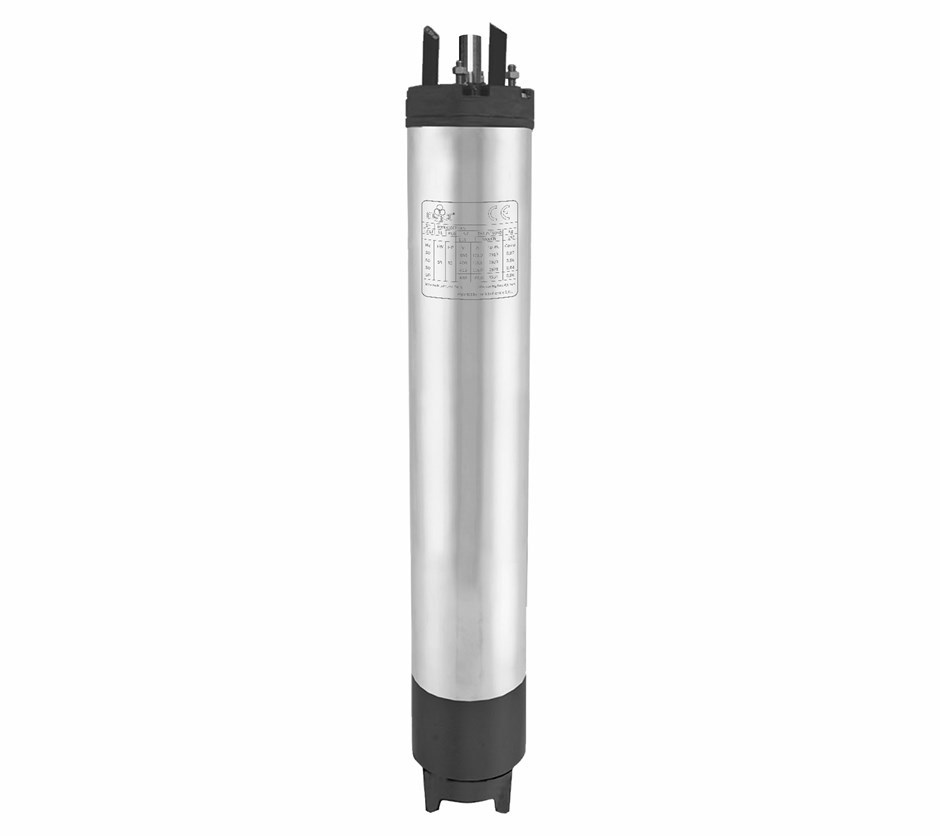

Franklin Electric has expanded its motor portfolio with the RWK10 submersible motor, a rewindable 10" motor with cataphoresis coated cast iron casings.

Product Info
Ordering / Performance
Downloads

  • FEATURES & BENEFITS

    • Cataphoresis coating on all cast components
    • Chemical treatment of stator weld seams
    • Excellent insulation properties thanks to PPC insulated winding wire as standard
    • Maintenance free water lubricated radial and axial bearings
    • Rubber diaphragm and pressure valve

    SPECIFICATIONS

    • Motors power range: 110 kW - 185 kW
    • Standard voltage: 380V - 415V/50Hz
    • Frequency: 50 Hz/60 Hz
    • Connection: 10" double flange
    • Voltage tolerance ± 10%
    • Maximum liquid temperature: 50 °C
    • Frequency of starts: 5 starts/ hour (with 1 m/s cooling flow)
    • Rubber cable length: 5 m
    • Mechanical seal material: Carbon / Ceramic
    • Starting method: DOL
    • Filled with mixture of water and glycol (FP -15 °C)
    • Suitable for VFD operation (30 Hz min. frequency)

    OPTIONS

    • Mechanical seal: Silicon carbide
    • Starting method: YΔ start

  • RWK10 - MOTOR MODEL NO. - 380-415V/50Hz

    Motor typePowerElectrical connectionDescriptionmodel no.
    [kW][HP]
    RWK 10110 T4005110150DOL10 V CER 150HP-110KW 8 380V 50HZ DOL RUB 5M829040103990591A
    DOL10 V CER 150HP-110KW 10KEY 380V 50HZ DOLR 5MCT829240803990591A
    S/D10 V CER 150HP-110KW 8 380V 50HZ S-D RUB 5M829040104990591A
    S/D10 V CER 150HP-110KW 10KEY 380V 50HZ S-D RUB 5M829240104990591A
    RWK 10132 T4005132180DOL10 V CER 180HP-132KW 8 380V 50HZ DOL N 5M829050105990591A
    DOL10 V CER 180HP-132KW 10KEY 380V 50HZ DOL N 5M829250105990591A
    S/D10 V CER 180HP-132KW 8 380V 50HZ S-D RUB 5M829050104990591A
    S/D10 V CER 180HP-132KW 10KEY 380V 50HZ S-D RUB 5M829250104990591A
    RWK 10147 T4005147200DOL10 V CER 200HP-147KW 8 380V 50HZ DOL N 5M829060105990591A
    DOL10 V CER 200HP-147KW 10KEY 380V 50HZ DOL N 5M829260105990591A
    S/D10 V CER 200HP-147KW 8 380V 50HZ S-D RUB 5M829060104990591A
    S/D10 V CER 200HP-147KW 10KEY 380V 50HZ S-D RUB 5M829260104990591A
    RWK 10185 T4005185250DOL10 V CER 250HP-185KW 8 380V 50HZ DOL N 5M829080105990591A
    DOL10 V CER 250HP-185KW 10KEY 380V 50HZ DOL N 5M829270105990591A
    S/D10 V CER 250HP-185KW 8 380V 50HZ S-D RUB 5M829080104990591A
    S/D10 V CER 250HP-185KW 10KEY 380V 50HZ S-D RUB 5M829270104990591A

    RWK10 - MOTOR PERFORMANCE DATA - 380-415V/50Hz

    Motor type Power FrequencyVoltage Current Efficiency [%] Power factor cos φ [%][rpm]
    [kW] [HP] [Hz] [V] [A]50751005075100
    RWK 10110 T40051101505038023081.384.383.20.830.870.882883
    40022382.484.883.50.790.850.872885
    4152168384.983.80.750.820.842895
    RWK 10132 T400513218038027882.684.683.80.770.840.872900
    40027083.685.584.70.710.810.852914
    41526783.185.684.60.650.760.822918
    RWK 10147 T400514720038030582.785.284.60.780.850.872904
    40029983.885.584.20.740.820.862905
    41529483.185.485.50.680.780.832907
    RWK 10185 T400518525038038082.385.384.90.760.840.872893
    40037482.985.184.60.710.810.852910
    41537083.985.884.90.660.770.822914

    RWK10 - MOTOR DIMENSION AND WEIGHTS

    Motor typePowerAxial thrust
    [N]    		Length
    [mm]    		Weight
    [kg]
    [kW] [HP]
    RWK 10132 T4005132180600001584370
    RWK 10147 T4005147200600001674400
    RWK 10185 T4005185250600001874464

    RWK10 - MOTOR LEADS

    Motor typePowerLead [mm²]Lead length
    [m]
    [kW][HP]380 V 50 Hz / 400 V 50 Hz / 415 V 50 Hz
    380 V 60 Hz / 460 V 60 Hz
    DOLYΔ
    RWK 10110 T40051101503 x 352x (3 x 25)5
    RWK 10132 T400513218050 + 50 + 502x (3 x 25)5
    RWK 10147 T400514720050 + 50 + 502x (3 x 25)5
    RWK 10185 T400518525070 + 70 + 702x (3 x 25)5
